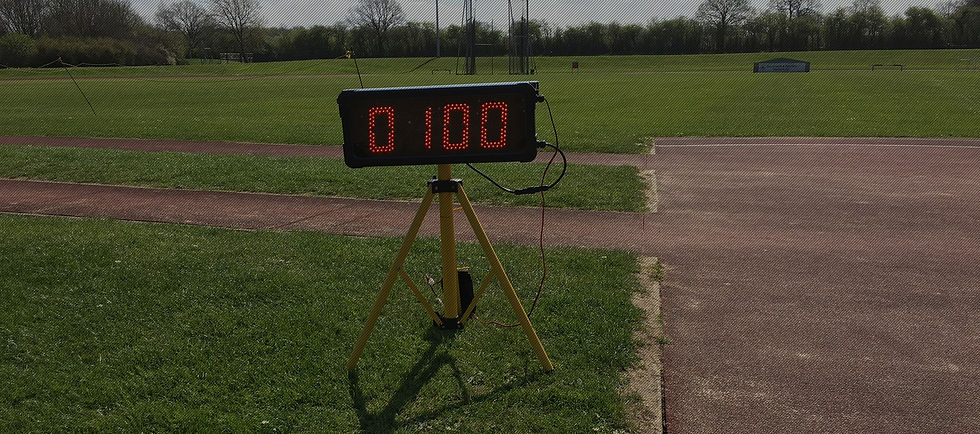

THE NEW DIGITAL COUNTDOWN CLOCK

The clock comes with tripod and supports either 240v or 12v DC power. It uses high quality ultra-bright LEDs, which are adjustable. The continuous working time can reach up to 100,000 hours.



Designed to be used on sports fields, in schools, entertainment venues or business sites.

The convenient wireless IR remote control can easily help you manage the time.



The waterproof (IP65) cabinet enables the unit to operate in all conditions even when it's raining heavily.

The anodized aluminum makes the cabinet durable & rugged.



The control method is wireless IR remote control. The efficient control distance is within 10 meters in line of sight.



It is important to point to the clock face with the IR remote control when you are controlling/editing the clock.



SPECIFICATION

• Black aluminum alloy frame

• Outdoor use, waterproof

• 4digits , 5inch digits height

• Display colour: Red

• Screen size: approx. 48cm x 20cm x 7.5cm

• IR Remote control

• Mains or 12V operation

• 12V external battery cable

• Adjustable height

• Robust steel mounting tripod

FUNCTIONS

• 12/24H clock

• MM:SS countdown/count up

• Pre-programmable buttons (for countdown times)

WATER PROOF
BATTERY BOX



The battery box is designed to hold a 10aH batterywith an external waterproof plug.

Plugs are fitted to the clock at time of order.



PRODUCT INFO



Clock Functions

1: Pre-programmable Countdown function

2: Countdown ,Count up, Stopwatch

3: Time



Parameters

LED digital counter IP65 red 5'' 4 digit Environment: Outdoor / Indoor use

Brightness: High brightness and can be adjusted Display format: HH:MM or MM:SS

Display colour: Red

Character height: 5 inch

Screen size (L*H*D): Approx. 54.5x20.5x6cm

Net Weight: 4.5KG



Visual range

Approx.40M



Overall structure

1. Frame: Waterproof Aluminum

2. Faceplate: Display window covers PVC glass

Technical norms

1. Time format: 12H/24H

2. Clock precision Less than 2 seconds on a daily basis

3. Power supply AC110-250 or 12v Battery



Operation

Remote control (Range: approx. 10m max)



Certification

CE RoHS approved



Warranty

1yr (Return to supplier) *see notes



Tripod / Stand

Material

Steel (Yellow finish)

Capacity

Max capacity 10kg

Operating Height

Adjustable height

Notes:- * Warranty

Return, Refund & Warranty Policy

1. Returns: Please notify us within 7 days from the reception of the item for a full refund;

*** Returns for any other reason than defective or damaged product, shipping fee will be deducted

2. Refund: 30 days money back guarantee;

*** Customers are responsible for return shipping due to any other reason than defective or damaged product; *** We will make a full refund if the item has an irreparable problem;

*** All returns must be notified within 7 days from the reception of the item;

*** The item must be returned at original condition with original package. Any extra damages occurred during the return due to lack of packaging will be deducted from the refund;

*** We only refund after we receive the returned item;

3. Warranty: 1 year full warranty time

*** Any damaged case or remote control or any other part of the product can replaced by a new one in the first 30 days; *** Any defective inner board can be replaced by a new one in the first 365 days
